QUICK OVERVIEW

Compact, rugged construction
Welded without sealing parts, no elastomer seals
Large selection of connections available.
Saving time by quick cable mounting by the customer with swift connector

Liên hệ

Mô tả

Overview solutions – Huba Control

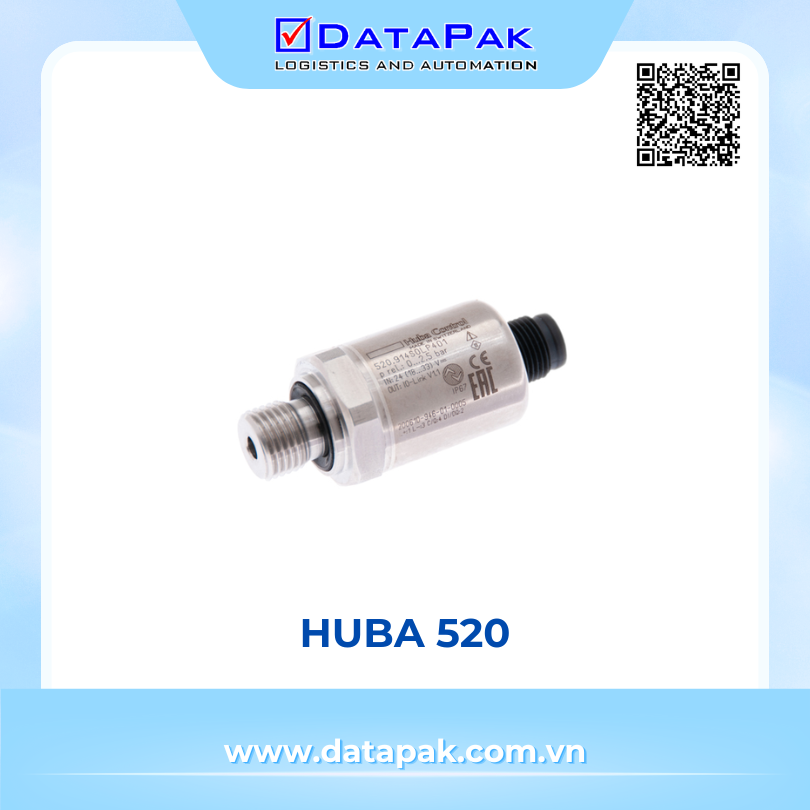

Pressure sensor 520
-1 … 9 bar / 0 … 2.5 – 1000 bar

The compact type 520 pressure transmitter is based upon the Huba Control developed thick film technology where the pressure measuring cell is fully welded. This pressure transmitter meets the high burst protection demands and is suitable for the use in all types of refrigerants inclusive ammonia.

Medium	Liquids, gases and refrigerants	+ Compact, rugged construction + Welded without sealing parts, no elastomer seals + Large selection of connections available + Saving time by quick cable mounting by the customer with swift connector
Pressure range	-1 … 9 bar / 0 … 2.5 – 1000 bar
Output	0 … 5 V, 1 … 6 V, 0 … 10 V, ratiom. 10 … 90% , 4 … 20 mA
Accuracy	typ. < 0.3% FS
Electrical connection	Swift connector, metri pack, connector DIN 175301-803-A or C, M12x1, braids, connector RAST 2.5
Pressure connection	Inside thread or outside thread
